(AA) - Generic Rigid Core Luxury Vinyl Running Line 6.5mm 22mil
Our Generic Rigid Core Luxury Vinyl Running Line sets the standard for premium residential and commercial flooring, delivering maximum resilience and refined aesthetics. Featuring an exceptionally thick 6.5mm profile and a heavy-duty 22-mil wear layer, this plank is engineered to withstand the most demanding use in retail shops, busy offices, and high-end homes. Along with sophisticated, realistic wood-look visuals, contemporary color palettes, and deep embossed textures, this collection is anchored by rigid core technology that provides uncompromising 100% waterproof protection and superior defense against heavy rolling loads, abrasive grit, and severe indentation.
Your choice for professional-level installation, ultimate longevity, and a truly premium investment!

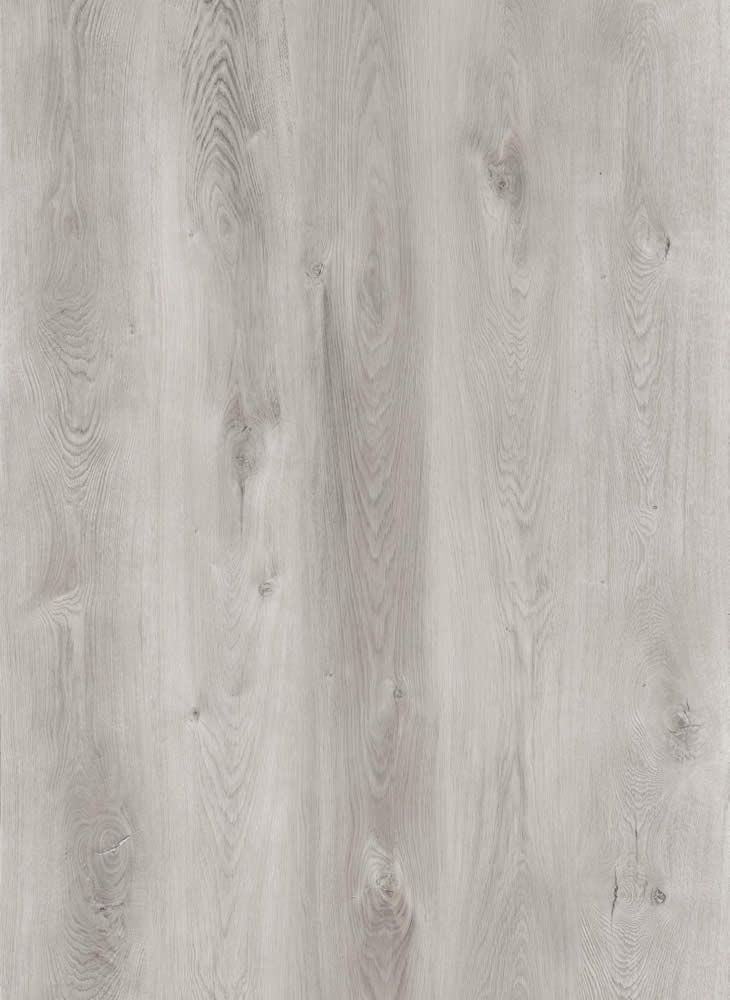

AA001 Lake Lanier

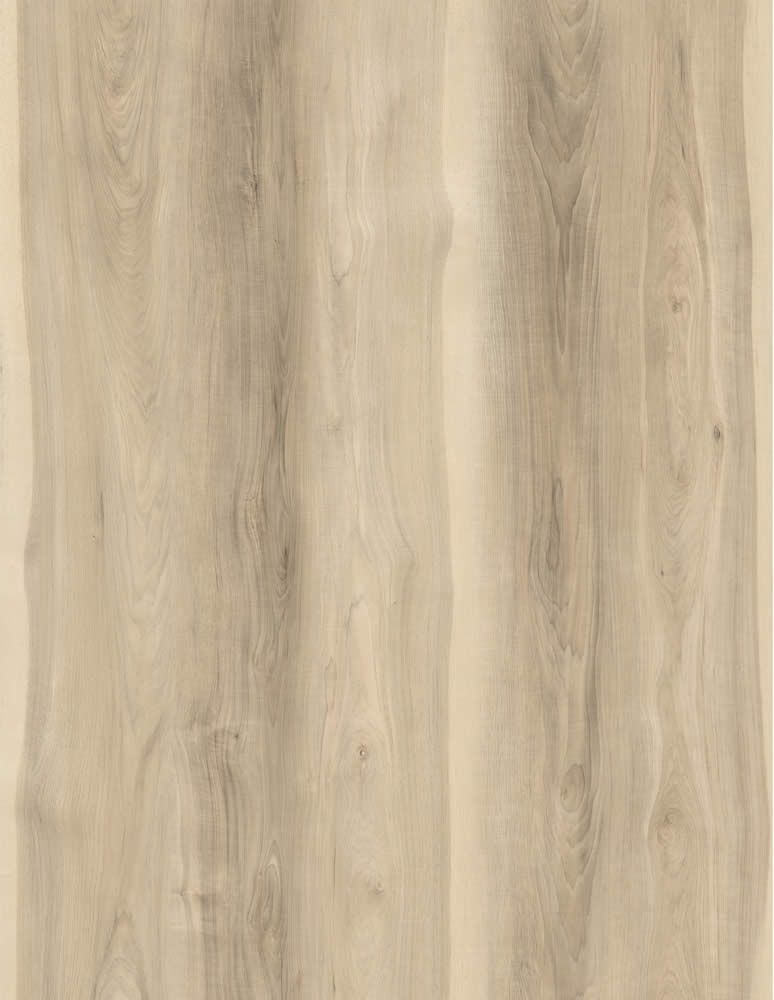

AA002 Kaneohe Bay

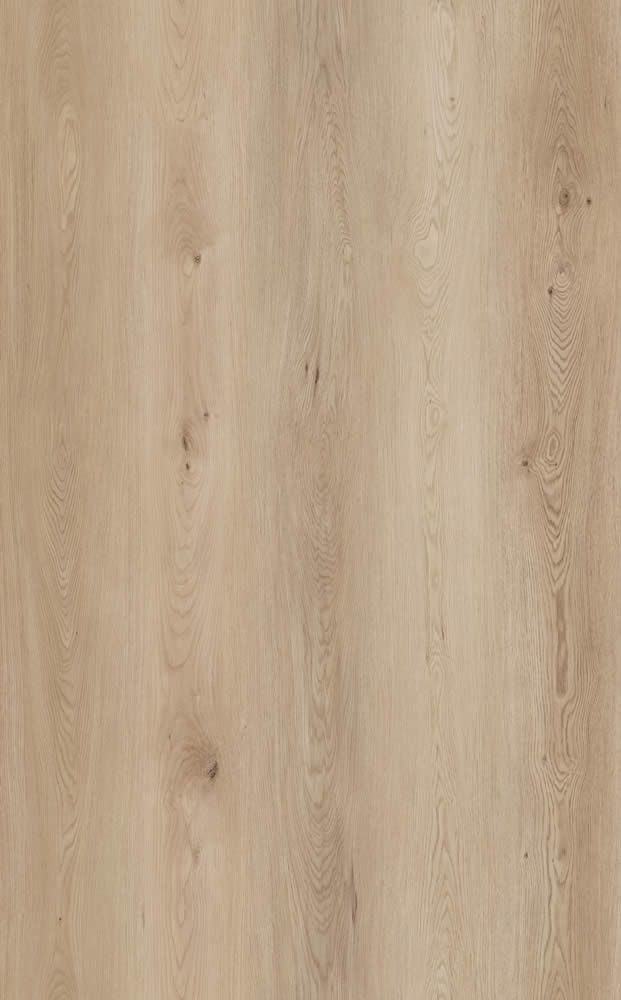

AA003 Mount Pleasant

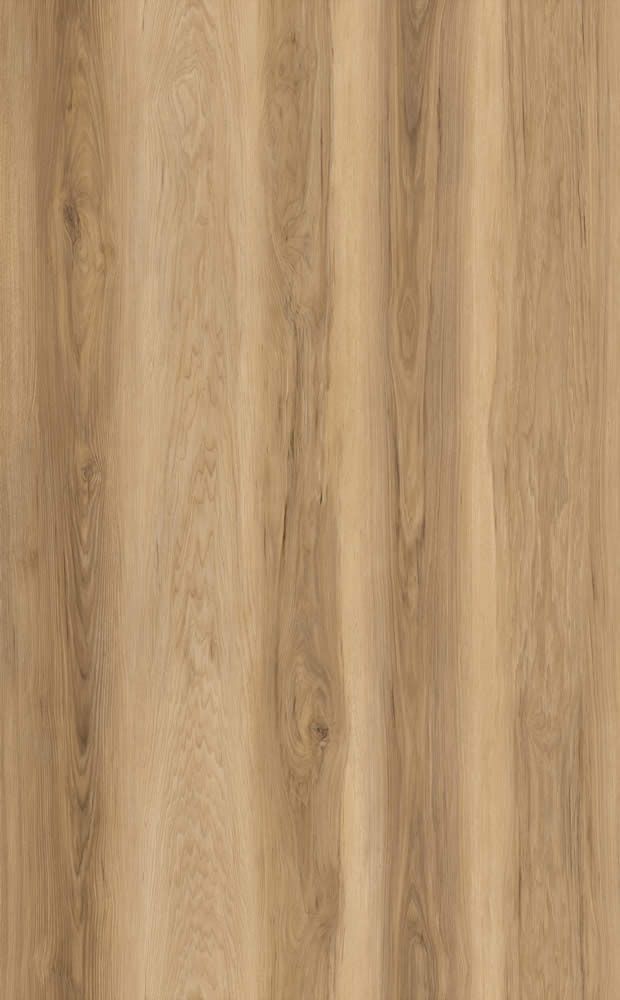

AA004 Carolina Hickory

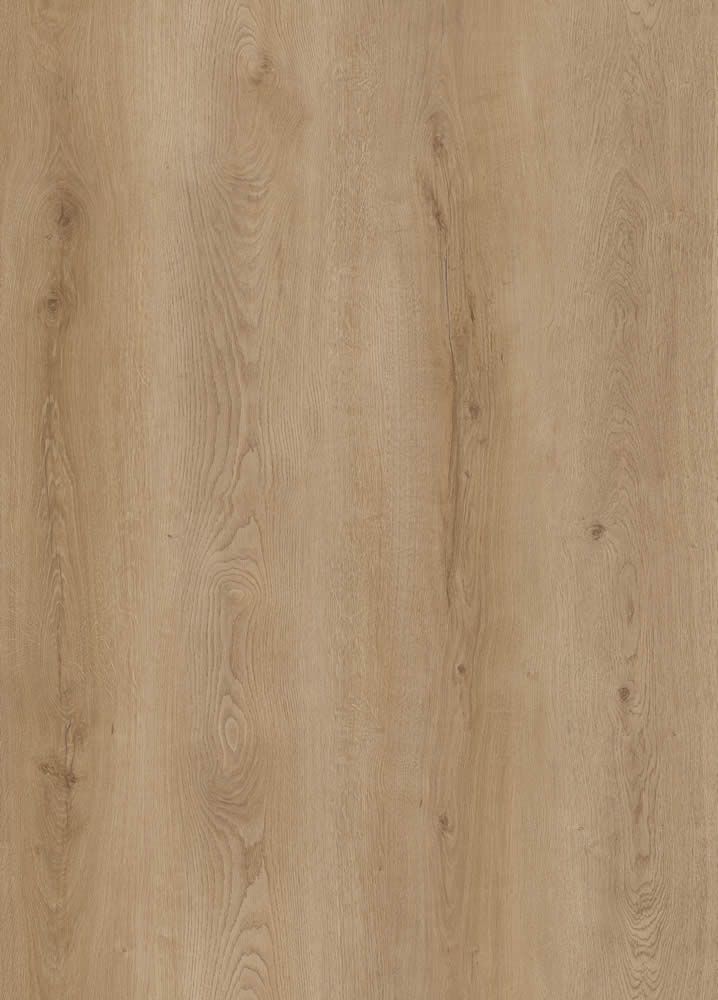

AA005 Monterrey

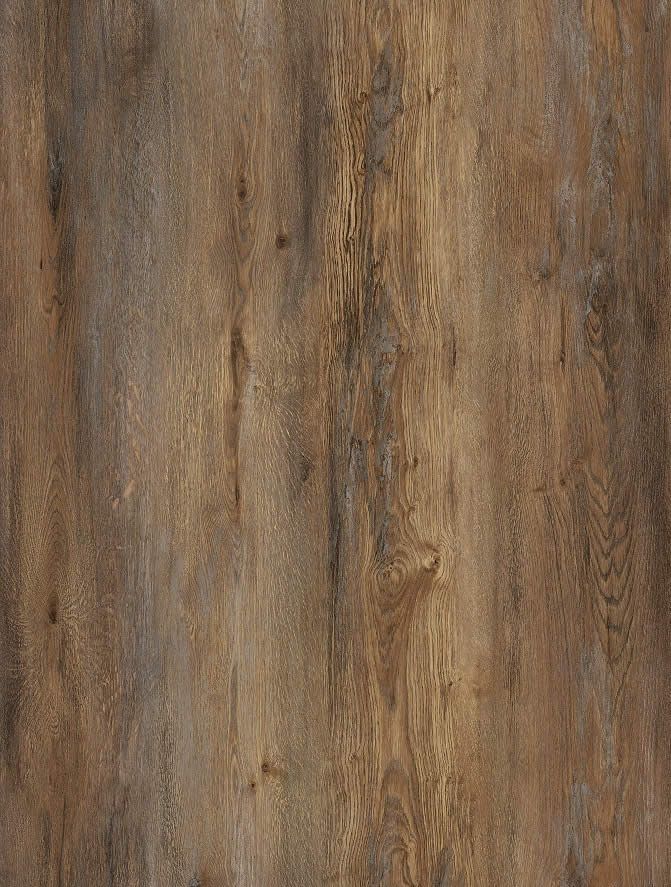

AA006 Brookfield

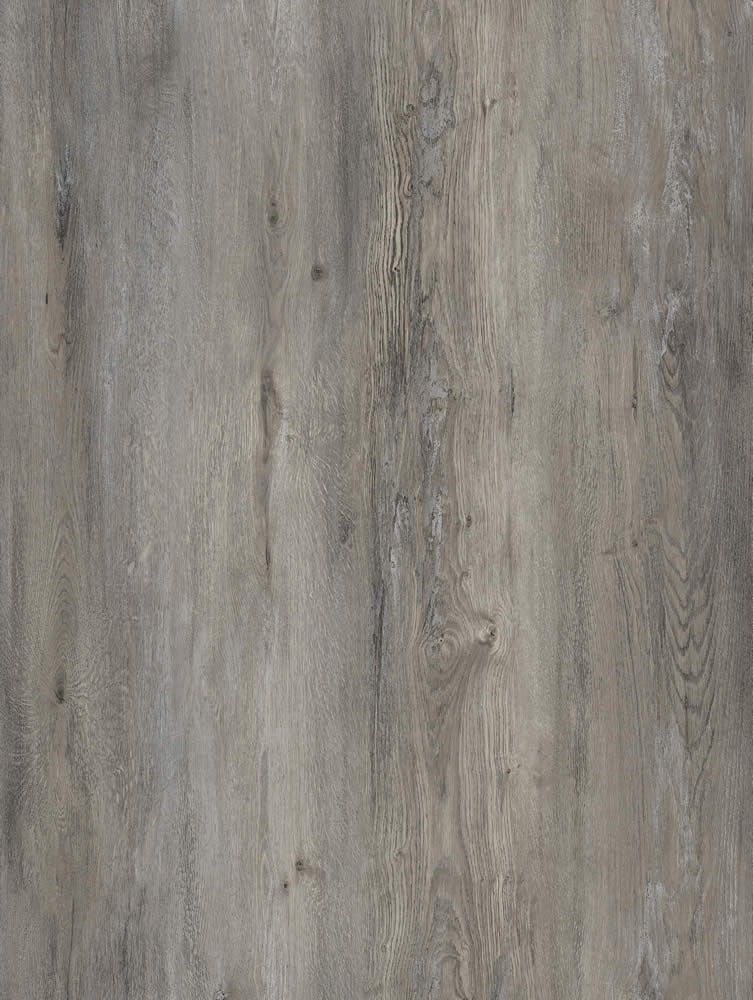

AA007 Placid Cabin

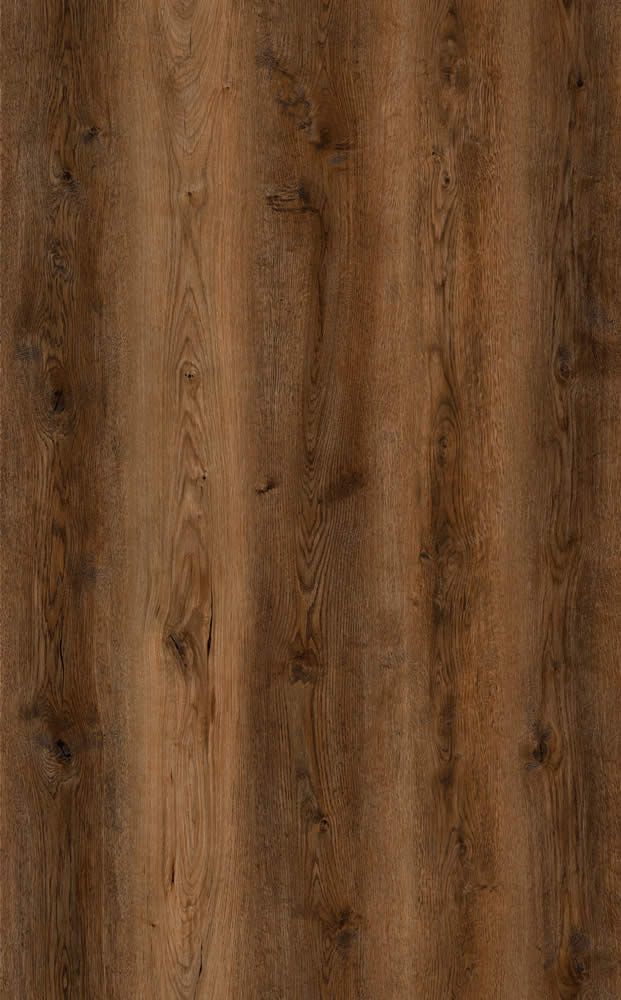

AA008 Berkley Oak
Specifications
Technical Data
Length | 80 | Width | 9 |
Thickness | 6.5mm | Wear Layer | 22mil |
Finishing | Wood Emboss | Edge Description | Micro Bevel |
Sqft/Box | 22.44 | lb/Box | 48.27 |
Box/Plt | 52 | Sqft/Plt | 1167 |
lb/Plt | 2545 | Plt/FTL | 17 |
Limited Residential Warranty | Lifetime | Limited Commercial Warranty | 15Years |
Items | Standards | Requirements | Result |
---|---|---|---|
GreenGuard Gold Certifie | Certified UL 2818 - 2013 Gold Standard for Chemical Emissions for Building Materials, Finishes and Furnishings | Refer to Standards | Pass |
Floorscore Certification | SCS-EC10.3-2014v3.0 | Refer to Standards | Pass |
CE Certification | EN14041 | Refer to Standards | Pass |
Fire resistance | EN 9239-1 EN ISO11925-2 EN 13501-1 | Critical Fluxf≥8.0kW/m2 Fs≤150mm within 20s Smoke≤750% minutes | Pass |
Phthalate tests (DBP/BBP/DEHP/DINP/ DNOP/DIDP) | EN 14372:2004 | N/A | Free |
Dimension stability | ASTM F2199-09(R2014) | ≦0.25% | Ave.:360N/50mm Pass Min.:330N/50mm |
Seam strength | EN 684:1995 | N/A | 0.4 Pass |
Residual indentation (%) | ASTM F1700-13a & ASTM F1914-07(2011) | Average value≦8 Individual value≦10 | No change in surface dulling,surface attack,or staining was detected |
Resistance to chemicals | ASTM F1700-13a & ASTM F925-13 | No more than a slight change in surface dulling,surface attack,or staining | 0.4 Pass |
Heat stability | ASTM F1514-03(R2013) | △E*ab< 8 | △E*ab=0.67 Pass |
Static loading | ASTM F970-17 | N/A | 0.04mm Pass |
Soluble heavy metal contents test | ASTM F963-16(Clause 8.3) | N/A | Free |
Large ball impact resistance | NALFA/ANSI LF-01-2011 | N/A | No cracks or fractures occurred at the height of 2500mm |
Static Electrical Propensity | EN 1815:2016 method A | ≦2kV | 0.2kV |
Sound Transmission Class | ASTM E90-2009(R2016) ASTM E413-10 | N/A | STC=68 |
Formaldehyde | ISO 17226-1:2008 | N/A | Free |
Surface Bond | NALFA/ANSI LF-01-2011 | N/A | 1.14MPa Pass |
Resilient floor covering Determination of peel resistance | EN ISO 24345:2012 | ≥54N/50mm | Longitudinal direction:95N/50mm Cross direction:95N/50mm |
Castor chair Resistance(25000 Cycles) | NALFA/ANSI LF-01-2011 ISO4918:2016 | N/A | No damage was found after test |
Thermal conductivity | EN 12667:2001 | N/A | 0.154 W/(m.K) |
Thermal Resistance | EN 12667:2001 | N/A | 0.033(m2.K)/W |
Colour Fastness | EN ISO 105-B02:2014 | N/A | Grade 6 |
Curling | ISO 23999:2008 | N/A | Average: 0.5mm Pass |
Locking strength | ISO 10582:2017 Annex D | Class 32, type I:≥1.5kN/m | Long side(X): 7.6 kN/m Short side(Y): 6.3 kN/m Pass |
Resistance to staining | ISO 26987:2008 | N/A | Index 0: Not affected Pass |
Slip resistance (oil-wet ramp test) | DIN 51130:2014-02 | N/A | Critical angle of inclination: 14.8°Classification: R10 Pass |
Resistance to bacteria | ISO 846-1997 Method C | N/A | Assessment of bacteria growth: 0 Pass |
Scratch Resistance | EN 16094B | >2,500g | 3,500g |
