(AR) - Generic Rigid Core Luxury Vinyl Running Line 5.0mm 20mil
Our Generic Rigid Core Luxury Vinyl Running Line delivers premium durability and sophisticated style, providing a high-performance flooring solution for both residential and light commercial spaces. Featuring a robust 5.0mm thickness and a powerful 20-mil wear layer, this plank is built to handle the heaviest traffic in kitchens, hallways, and office waiting areas. Along with stunning, high-definition wood-look visuals, contemporary tones, and detailed textures, this collection is supported by core technology that ensures 100% waterproof reliability and industry-leading resistance to deep scratches, abrasive wear, and heavy static loads.
Your choice for easy, professional-grade installation, superior long-term performance, and incredible value!

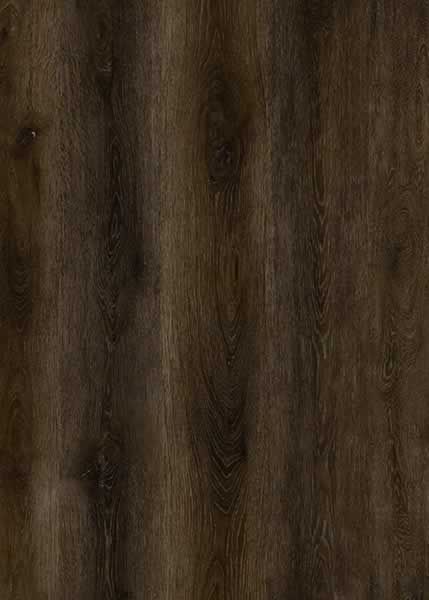

AR101 Nightfall Hills

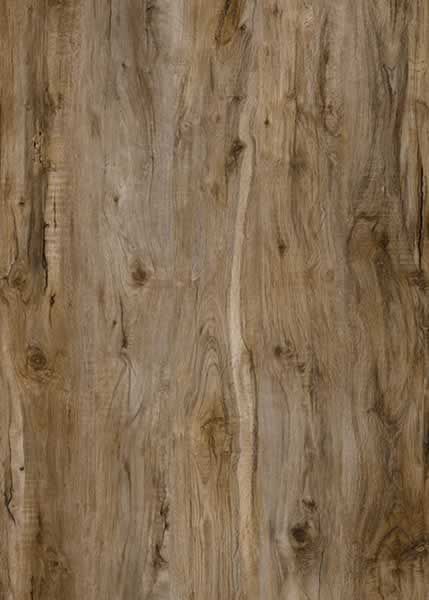

AR103 Vintage Cabin

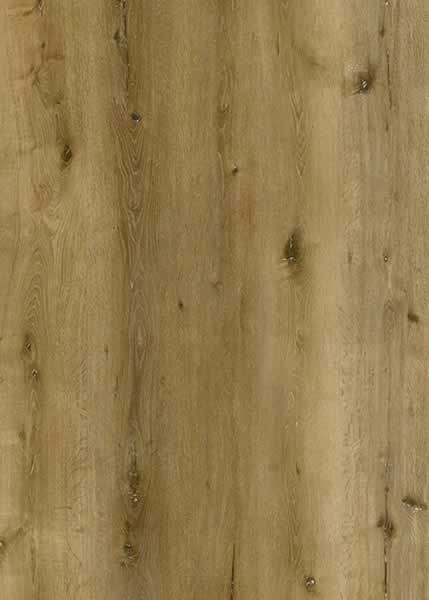

AR104 Natural Oak

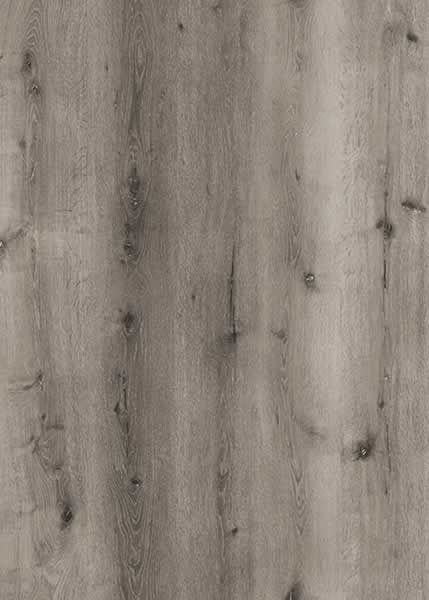

AR105 Classic Lodge

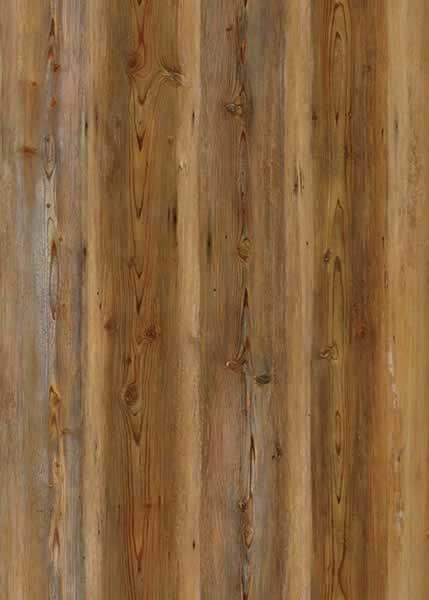

AR106 Golden Pine

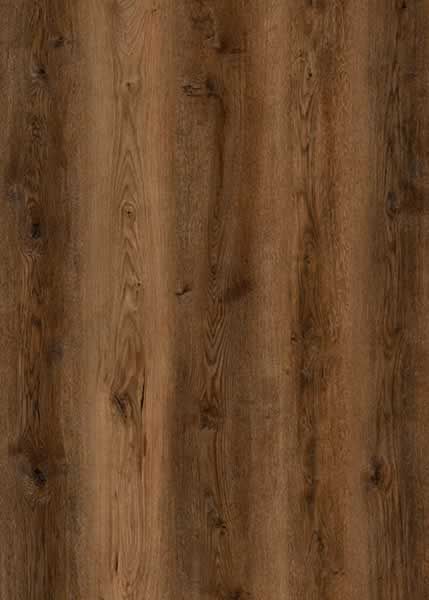

AR108 Berkley Oak

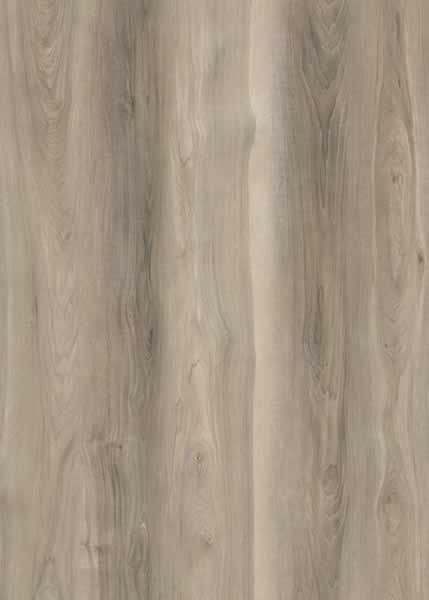

AR111 Sierra Sands

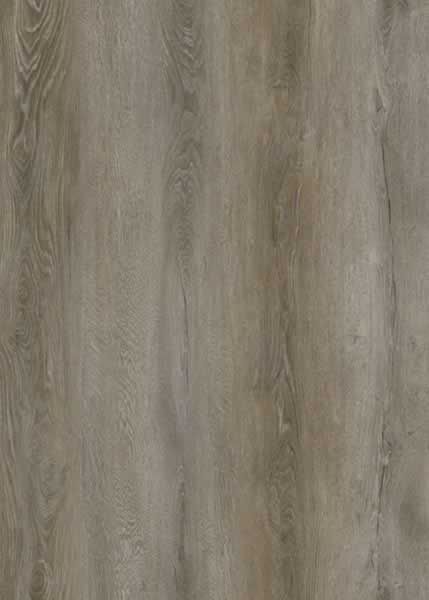

AR114 Rock Ferry

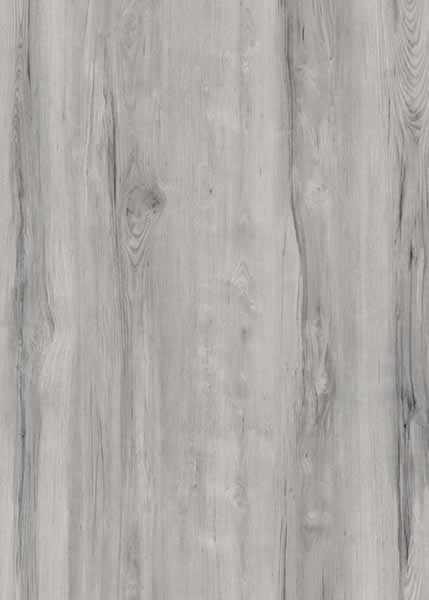

AR115 Fountain Hills

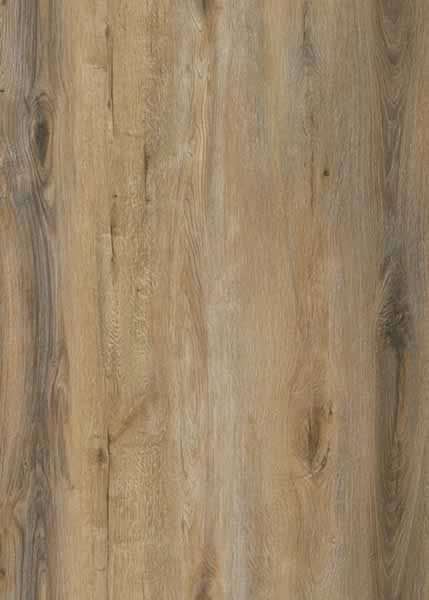

AR117 Vintage Hickory

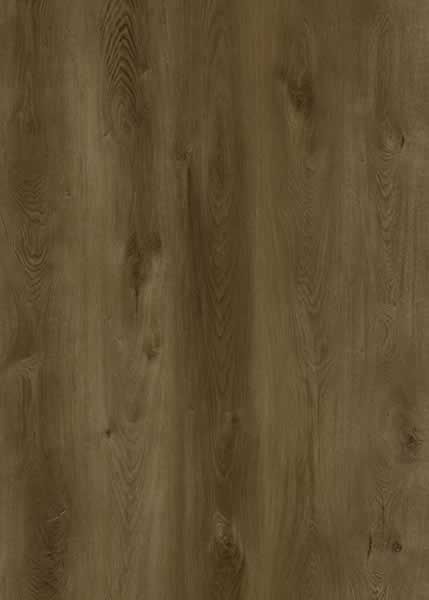

AR118 Mill Creek

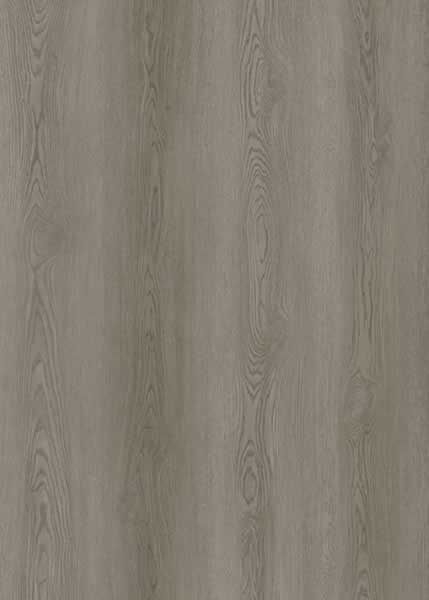

AR126 Sterling Oak

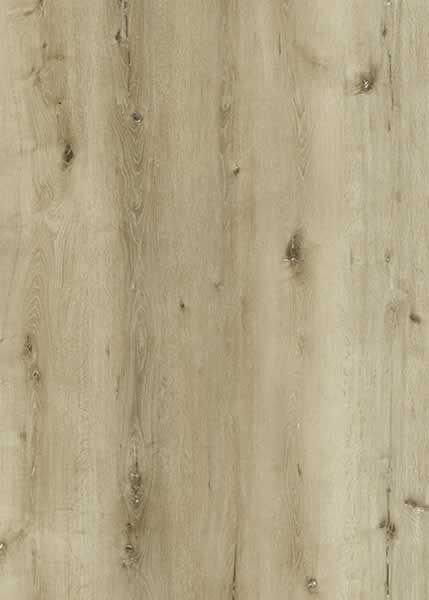

AR130 Lighthouse Bay

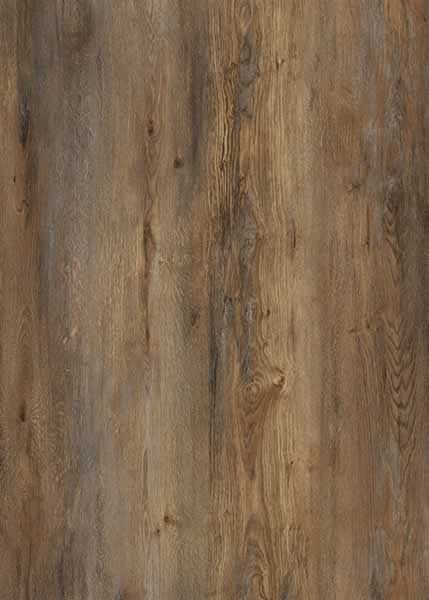

AR131 Brookfield

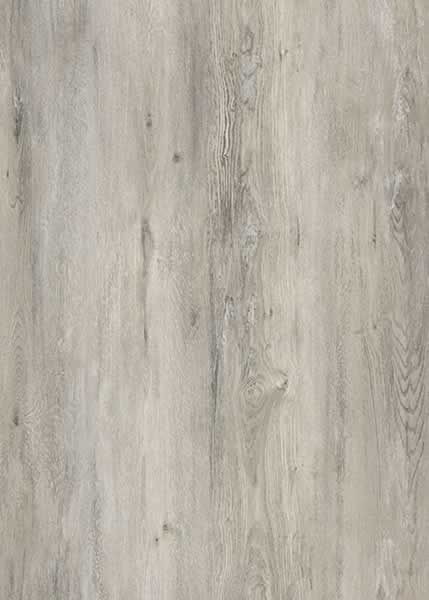

AR133 Canal Point

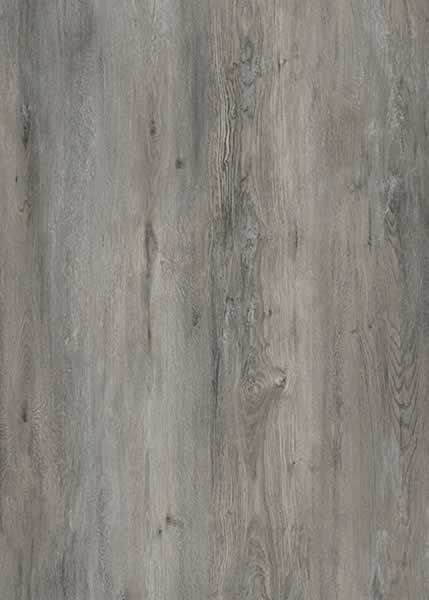

AR134 Placid Cabin

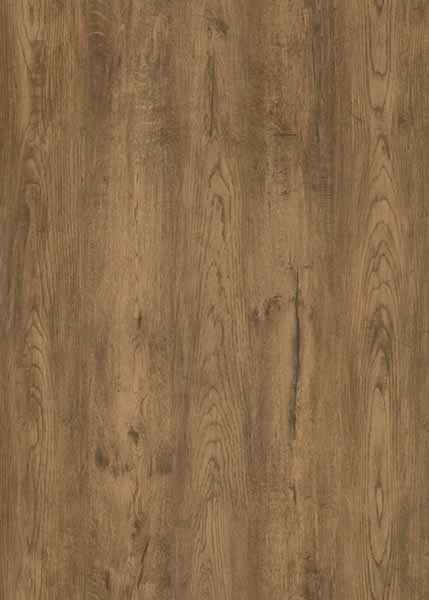

AR135 Logging Camp Lite

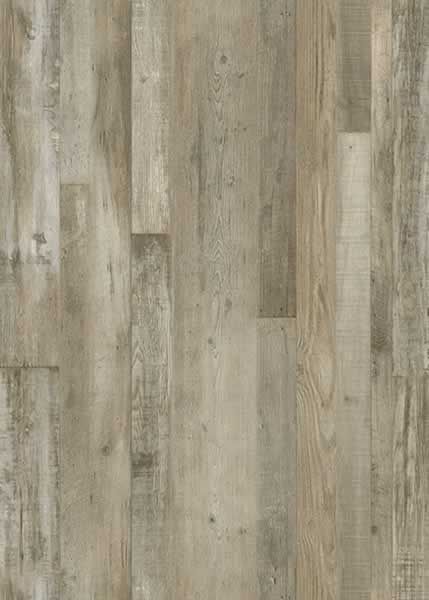

AR136 Everstill Forest Lite

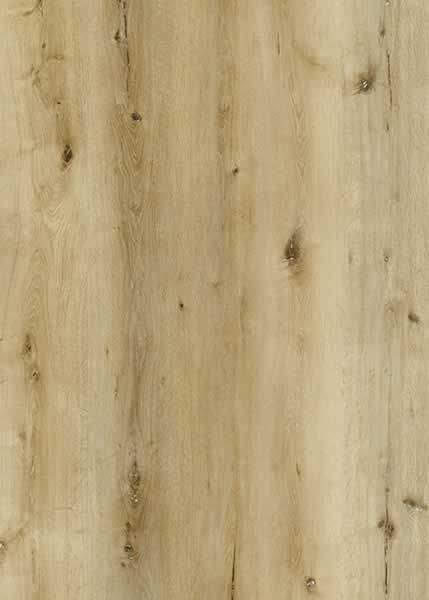

AR137 Cherry Point Lite

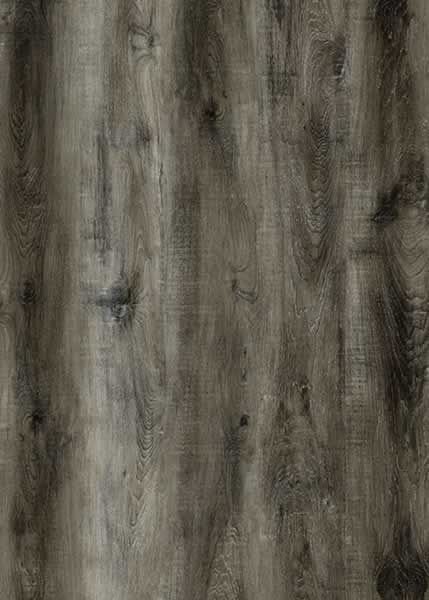

AR138 River View Lite

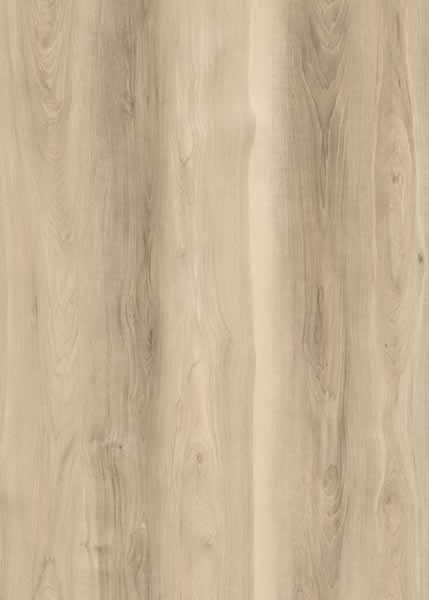

AR139 Kaneohe Bay Lite

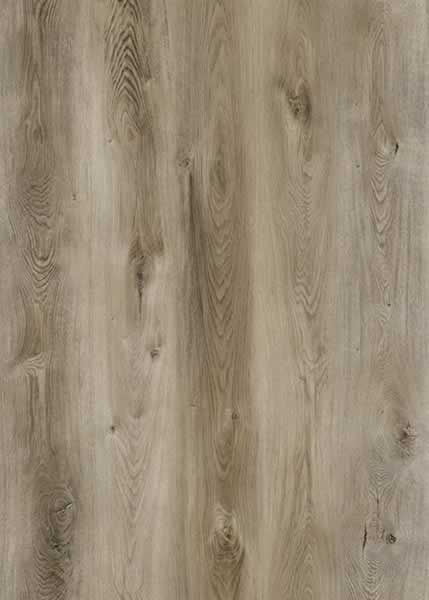

AR140 Catalina Lite

AR141 Petrified Forest Lite

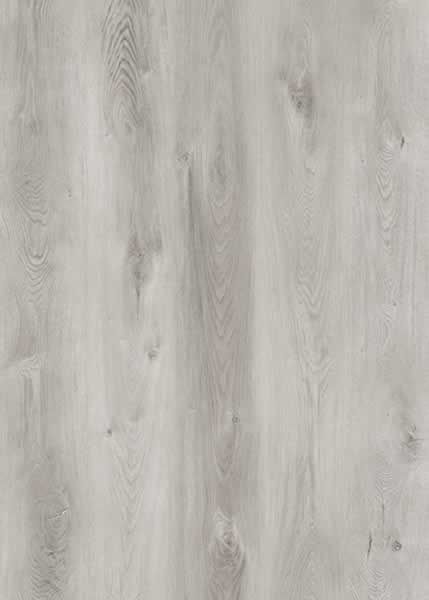

AR142 Lake Lanier Lite

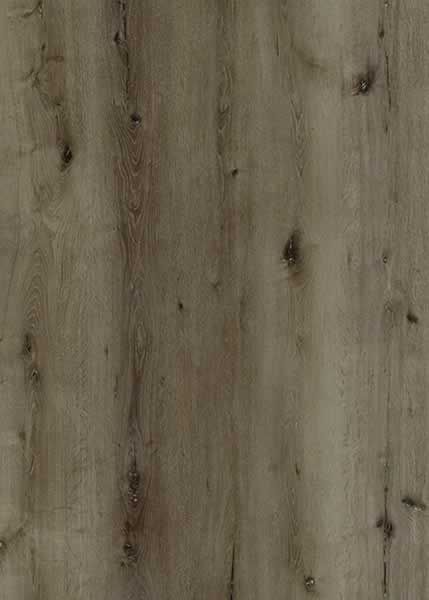

AR146 Oceanside Lite

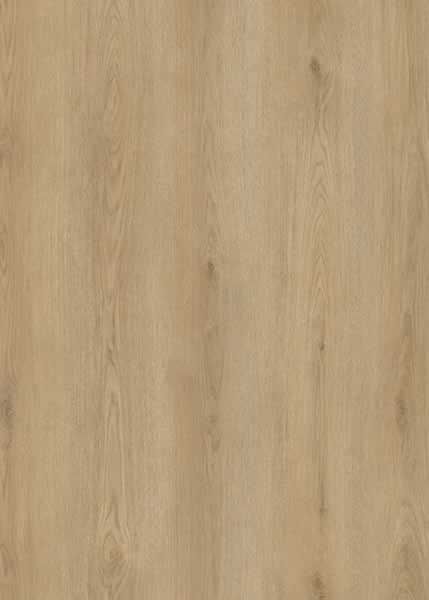

AR147 Sandy Plains

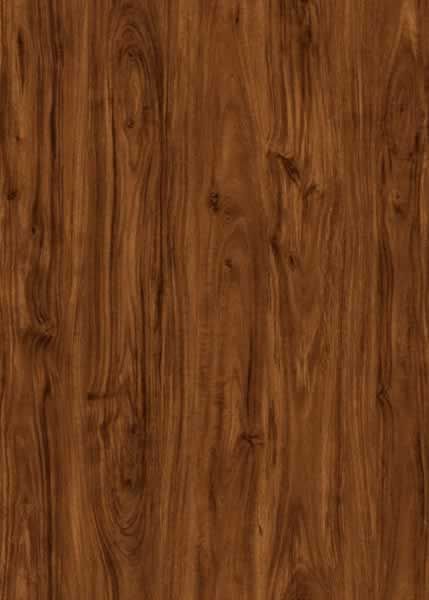

AR151 Redwood Forest

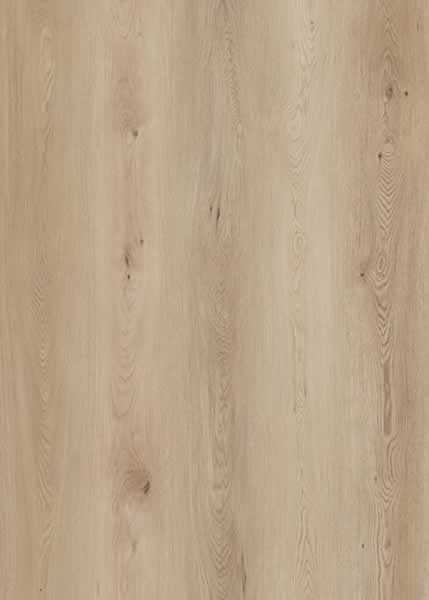

AR168 Mount Pleasant

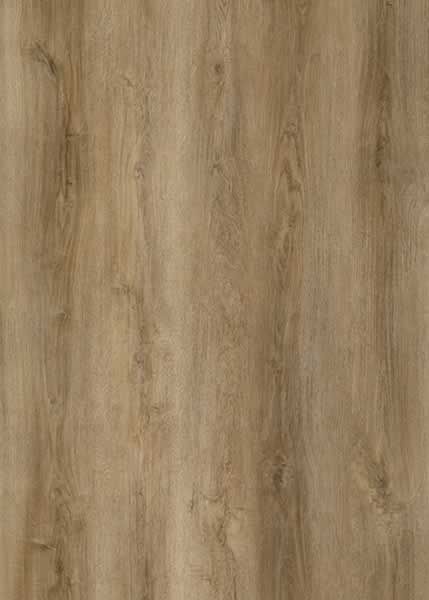

AR169 Cambridge

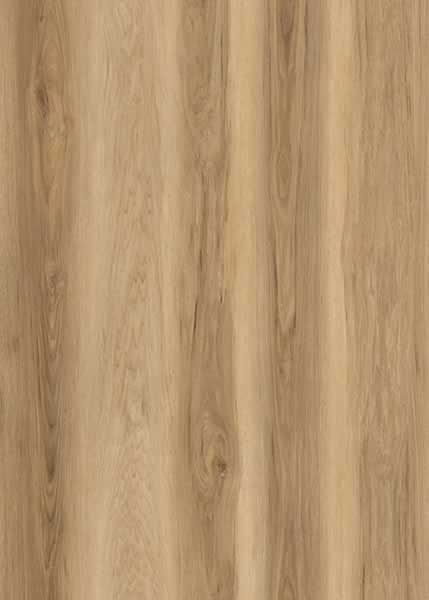

AR170 Carolina Hickory

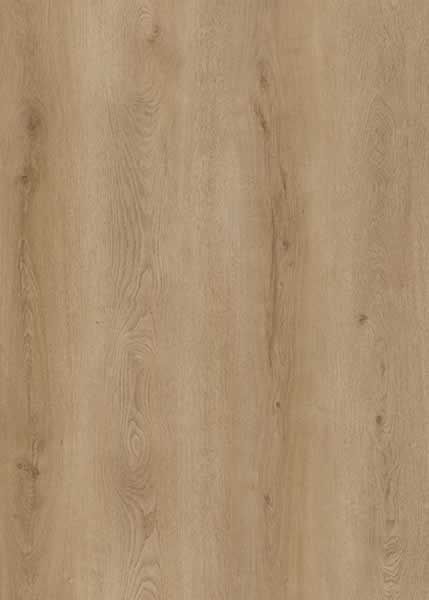

AR171 Monterrey

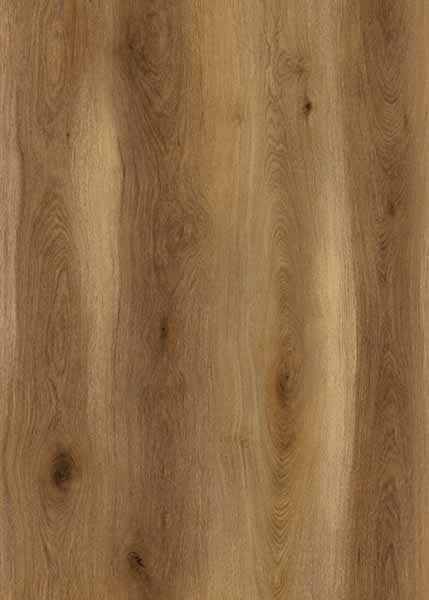

AR172 Stanford Oak

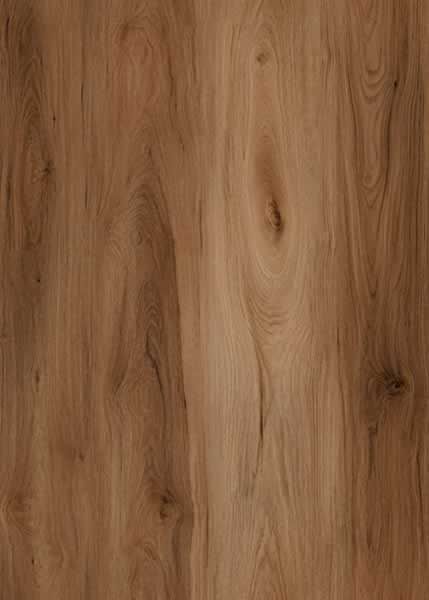

AR173 Ruby Falls
Specifications
Technical Data
Length | 48.03 | Width | 7.09 |
Thickness | 5mm | Wear Layer | 20mil |
Finishing | Random EIR | Edge Description | Micro Bevel |
Sqft/Box | 23.64 | lb/Box | 40.0 |
Box/Plt | 55 | Sqft/Plt | 1300.2 |
lb/Plt | 2230 | Plt/FTL | 20 |
Limited Residential Warranty | Lifetime | Limited Commercial Warranty | 15Years |
No. | Description | Method | Standard | Result | Performace Rating |
1 | Packing Appearance | Internal | Pallets/Cartons/Labels/Inserts/Bar Codes match customer order in quality and quantity, with neat appearance. | Pass | Better |
2 | Product Appearance | Internal | Material must match customer order. No print film folding, no rough bevel, no bevel with white line, no film scratch or breakage, no color difference, no wear layer bubbles, no impurities, no stains, no dents, no scratches, no broken corners, no fish eyes, no trash, no holes, no hair/ foreign subject, no overhang or uneven backpad, etc. | Pass | Better |
3 | Dimensions | ASTM F1700 | ± 0.40 mm ± 0.10 mm | 0.03mm 0.02mm | Best Best |
4 | Overall Thickness | ASTM F1700 | ± 0.10 mm | 0.02mm | Best |
5 | Squareness | ISO 24342 | ≤ 0.25 mm ≤ 0.25 mm | 0.03mm 0.02mm | Best Best |
6 | Straightness | ISO 24342 | ≤ 0.25 mm ≤ 0.25 mm | 0.05mm 0.01mm | Best Best |
7 | Stitching Gap (mm) | EN13329 | ≤ 0.10mm | 0.02mm | Best |
8 | Height Difference | EN13329 | ≤ 0.10mm | 0.03mm | Best |
9 | Resilient floor covering Determination of peel resistance | EN ISO 24345:2012 | ≥54N/50mm | Longitudinal direction: 95N/50mm Cross direction: 95N/50mm | Best |
10 | Scratch Resistance | EN 16094B | > 2500g | 3,500g | Best |
11 | Micro-Scratch Resistance (A & B) | EN 16094 | MSR-B1 - B3 | MSR-B2 | Better |
12 | Coating Adhesion (Cross hatch) | EN 16094B | 5B | 5B | Best |
13 | Abrasion Resistance of Organic Coatings by the Taber Abraser | ASTM D4060 | No pass-fail criteria | Abrasion Wheel H-18 Load Applied 1000 Grams Number Of Cycles:14000 | Best |
14 | Locking strength | ISO 10582:2017 Annex D | Class 32, type I:≥1.5kN/m | Long side(X): 7.6 kN/m Short side(Y): 6.3 kN/m Pass | Best |
15 | Determination of dimensional stability and curling after exposure to heat | ISO 23999 ASTM F3261 | Length mean≦0.25% Width mean≦0.25% The curling≦2mm | Length mean = -0.05% Width mean = 0% The curling = 0mm | Best |
16 | Wear Layer Abrasion Resistance | EN 13329 (S-42, 200 cycle change) | IP≥2000 cycles | 2400 cycles Abrasion Class: >AC3 | Better |
17 | Density | ASTM D2395 | 1.9-2.2g/cm³ | 1.98g/cm³ | Good |
18 | Phthalate tests (DBP/BBP/DEHP/DINP/ DNOP/DIDP) | EN 14372:2004 | N/A | Free | Best |
19 | Heavy Metal Content Analysis | ASTM F963-16(Clause 8.3) | Antimony < 60 ppm, Arsenic < 25 ppm, Barium < 1000 ppm, Cadmium < 75 ppm, Chromium < 60 ppm, Lead < 90 ppm, Mercury < 60 ppm, and Selenium < 500 ppm | Free | Best |
20 | Gloss Level (gu) | ASTM D523 | ±2gu | < ±2gu | Good |
21 | Resistance to Chemicals | ASTM F925 | 0 - No change (----) 1 - Slight change 2 - Moderate change 3 - Severe change | 0 No Change | Good |
22 | Determining Resistance of Synthetic Polymers to Fungi | ASTM G21 | Rating 0: No Fungal Growth on Sample Rating 1: Trace of Growth (< 10% coverage) Rating 2: Light Growth (10-30% coverage) Rating 3: Medium Growth (30-60% coverage) Rating 4: Heavy Growth (60-100% coverage) | Rating 0, No Fungal Growth on Sample | Best |
23 | Smoke Density (Non-Flaming) | ASTM E662 | ≦450 | 291 | Best |
24 | Smoke Density (Flaming) | ASTM E662 | ≦450 | 237 | Best |
25 | Calculated Sound Transmission (STC) | ASTM E90-09 (2016) ASTM E413-16 | No pass-fail criteria | 52 | Good |
26 | Residual indentation | ASTM F1700-13a & ASTM F1914-07(2011) | Average value≦8% Individual value≦10% | 0.40% | Best |
27 | Determination of Indentation and Residual Indentation | ISO 24343-1:2012 | N/A | 0mm | Best |
28 | Static Load | ASTM F970-17 | N/A | 0.003 Inch @ 250psi | Good |
29 | Heat Stability of Resilient Flooring by Color change | ASTM F1514 | < 8.0 ΔE | ΔE=0.67 | Best |
30 | Light Stability of Resilient Flooring by Color change | ASTM F1515 | < 8.0 ΔE | 0.29-0.46 ΔE | Best |
31 | Static Coefficient of Friction | ASTM C1028 | ≥ 0.60 for dry surfaces ≥ 0.53 for wet surfaces | Dry 0.69 Wet 0.56 with 50lbs load | Good |
